Vigas Vimar Boiler Products

VIMAR's Vigas Boilers are one of the most popular brands of biomass boilers in North America. Their reliability, consistency, performance and price are unbeatable. They truly have been a product to set the bar to.

Vigas Boilers by Vimar are manufactured in the artisan style. Each boiler is made from start to finish by the same person to create a level of quality control that is ingenious. Each boiler is initialed by the worker and can be tracked to facilitate process improvement and training with precision. Vimar's ability to ensure consistent finished products has been fundamental to their culture as a company.

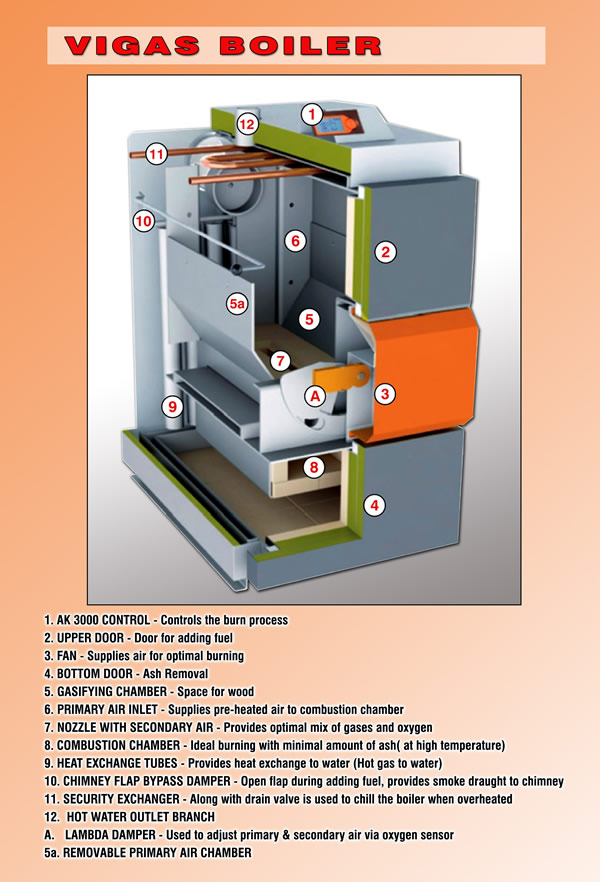

All USA Vigas boilers utilize Lambda Sensors to constantly monitor and control both Primary and Secondary air delivery to the fire. This oxygen sensing system ensures the gasification is operating at peak efficiency from initial firing through shut down. This technology provides an efficient way to utilize significantly less wood to produce more heat compared to traditional wood boilers. The emissions from the stack are also reduced to improve air quality and provide you with a smoke free burn. The heating capacity of the Vigas boilers ranges from 25 KW - 100 kW or 85,000 BTUs - 341,000 BTUs.

A unique ability of the Vigas boiler controls allows the end user is to modulate its burn. Meaning the smallest unit, 25 kW / 85,000 BTUs, is capable of producing 17,000 - 104,000 BTU's; all with the push of a button. The boiler can be adjusted to fit the load to ensure that your fuel isn't being wasted; especially as the seasons change and the ambient outdoor temperature demands fluctuate. Vigas offers an affordable, carbon neutral way to heat your home, shop, barn and business.



Vigas 25 WLC Wood Gasification Boiler



Vigas 25kw w/Lambda

The Vigas Model 25kw unit is a wood gasification boiler and designed for firewood, bio bricks or bio fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 17,000-105,000 BTU power output.

Vigas 40 WLC Wood Gasification Boiler



Vigas 40kw w/Lambda

The Vigas Model 40kw unit is a wood gasification boiler and designed for firewood, bio bricks and bio fuel wood combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) are inadmissible. The boiler is designed in at 27,000 to 140,000 BTU power output.

Vigas 60 KW Wood Gasification Boiler



Vigas 60kw with Lambda

The Vigas Model 60kw unit is a wood gasification boiler and designed for firewood, bio bricks and bio fuel wood combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) are inadmissible. The boiler is designed in at 51,000-245,000 BTU power output.

Vigas 80 KW Wood Gasification Boiler



Vigas 80kw with Lambda

The Vigas Model 80kw unit is a wood gasification boiler and designed for firewood, bio bricks or bio fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 85,000-314,000 BTU power output.

Vigas 100 KW Wood Gasification Boiler



Vigas 100kw w/Lambda

The Vigas Model 100kw unit is a wood gasification boiler and designed for firewood, bio bricks or bio fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 85,000-341,000 BTU power output.

Vigas 18 DP Wood Pellet Boiler



Vigas 18 DP

The Vigas Model 18DP is a wood gasification unit designed for firewood, bio bricks, bio-fuel or pellets at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 41,000-62,000 BTU power output.

Vigas 29 UD Wood Burning Boiler



Vigas 29 UD Wood

The Vigas Model 29 UD Wood is a wood gasification unit designed for firewood, bio bricks or bio fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 27,000-100,000 BTU power output.

Vigas 29 UD Coal Burning Boiler



Vigas 29 UD Coal

The Vigas Model 29 UD Coal unit is a wood gasification unit designed for brown coal fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 27,000-119,000 BTU power output.

Vigas 25 TVZ Hot Air Furnace


Vigas 25 TVZ

The Vigas Model 25 TVZ unit is a hot unit furnace and designed for firewood, bio bricks or bio fuel combustion at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 17,000-95,000 BTU power output. This model is appropriate for heating of a structure where hot air ventilation system is utilized.
